Door Hardware Accessories - Hinge I
SNS1DL33GL
SNS1DR33SL
SNS1DL33U2
Product Name
Item No.
Cover
Color
Hinge I R
SNS1DR33
Painting
GL(Gold),SL(Silver),U2(Brown)
Hinge I L
SNS1DL33
Painting
GL(Gold),SL(Silver),U2(Brown)
33mm is the thickness of door. Recommended weight of door is below 40KG

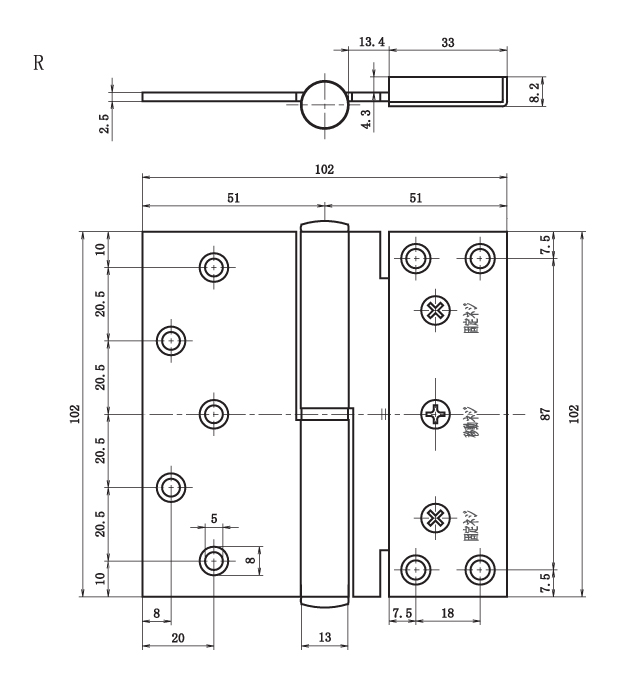

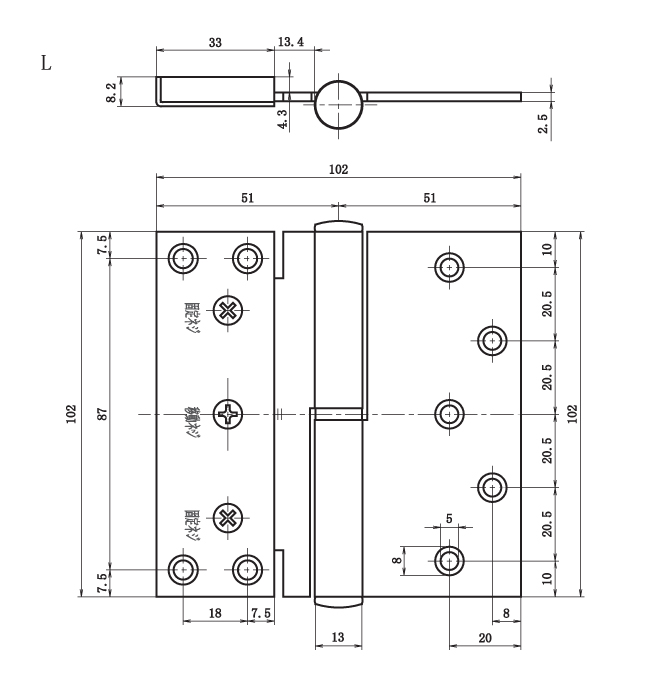

Dimension
Drawing
Installation (make sure the compliance of width and height of the door and the frame)
1. Fix the hinge in the slot of the frame.
2. Align the axis of the lower hinge with the hole as showed in the guide (no insertion). Align the upper hinge with the hole and insert it in the hole.
Adjustment value and adjustment of hinge
Forward and backward adjustment
-2 - 2mm

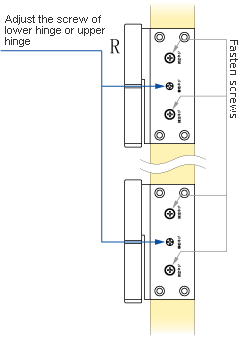

If the cases below happen, you can adjust the hinge with a screwdriver.
Loosen screws before the adjustment and fasten screws after the adjustment.
