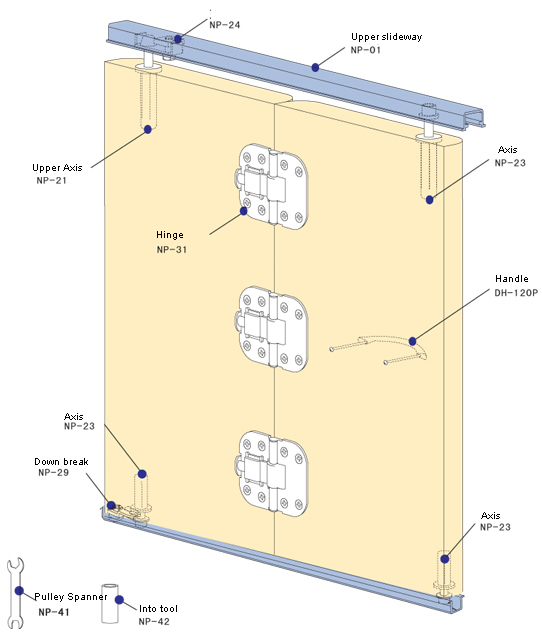

List of ZD-2-02 hardware accessories |
Accessories |
Down baffle NP-29 |
Supporting board NP-24 |
Slideway NP-01 |

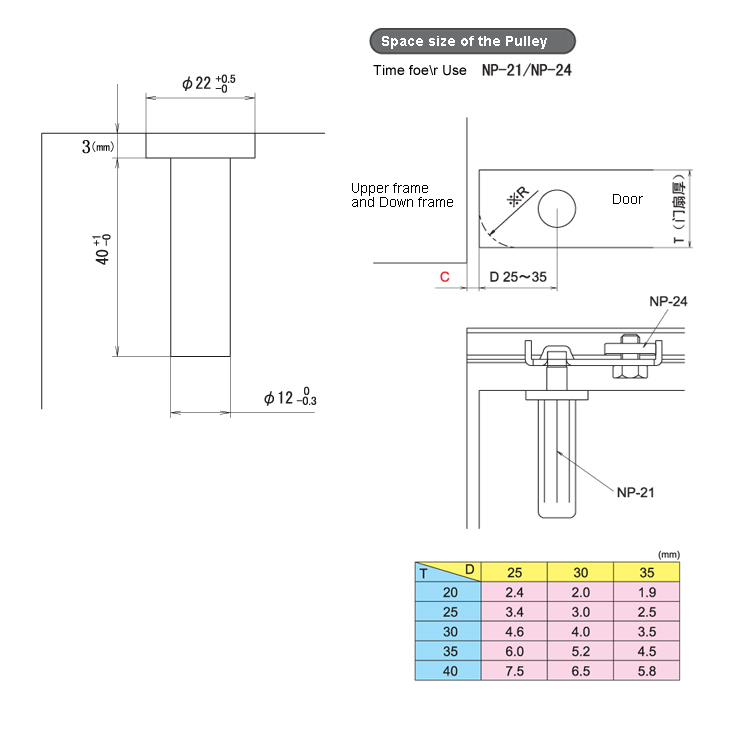

Upper axis NP-21 |
Slideway NP-23 |
|
|
|
|
|
Volume |
|
1 |
2 |
1 |
3 |
Accessories |
Central Hinge |
Intro Plus
NP-42 |
handle
DH-120P |
|
|
|
|
|
|
|
Volume |
3 |
1 |
1 |
1 |
|
|
Installation |
 |
|
|
1. Fix the supporting board NP -24 in the upper slideway NP-01. (No tight screw for adjustment) |
|
 |
|
|
|
|
|

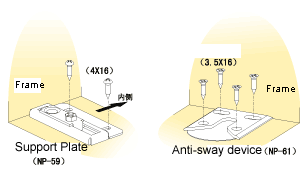

2. Fasten the axis supporting board NP-59 and sway retainer NP-61 on the ground separately near the door. |
|
|
|
|
| |
3. Fasten the axis supporting board NP-59 and sway retainer NP-61 on the ground separately near the door. |
|
|
|
|
|
| |
4. Fasten the axis supporting board NP-59 and sway retainer NP-61 on the ground separately near the door. |
|
|
|
|
|

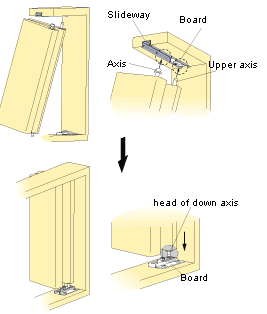

7. Lean the door as showed in the guide and insert the upper axis and slideway in the concave of supporting board and slideway. Raise the door vertically and align the head of down axis with the concave of the supporting board. Push down the door. |
|
|
|
|
|
|
8. Fasten the hanle DH -120 in the hole. |
|
|
|
|
Adjustment |
|
|
|
1. If the case happens below, please loosen the hexagon head screw of the supporting board with spanner NP-41.Make the door vertical after adjustment.
Fasten the door with screws. |
|
|
|
|
|
|
2. If the case happens below, please span the hexagon head screw of down axis NP-22 with spanner NP-41 to adjust clearance between door and frame. |
|
|
|
|
|
|

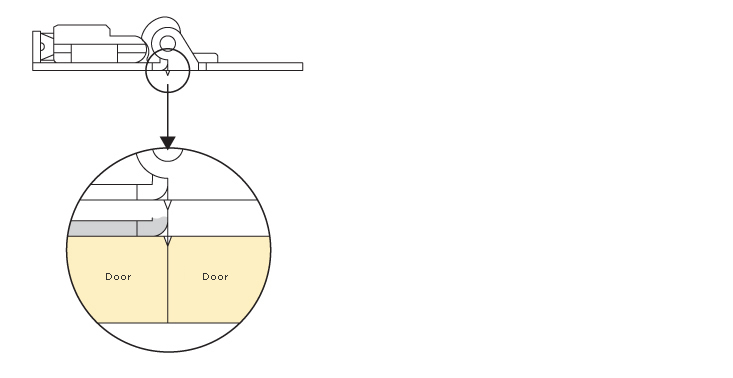

| 3. Align the central of upper and down axis while adjusting. |
|
|
|
|
|
|
|
