Door Hardware Accessories - Hinge III (NSO)
SNO3DR33GL
SNO3DR33SL
SNO3DR33U2
Product Name
Item No.
Cover
Color
Hinge III (NSO)
NSO3D
Painting
GL(Gold),SL(Silver),U2(Brown)
33mm is the thickness of door. Recommended weight of door is below 40KG
Dimension

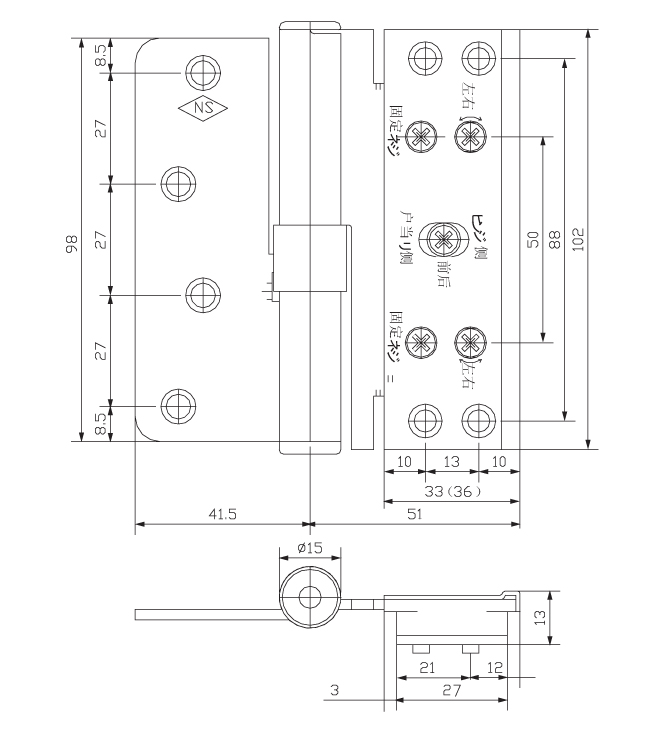

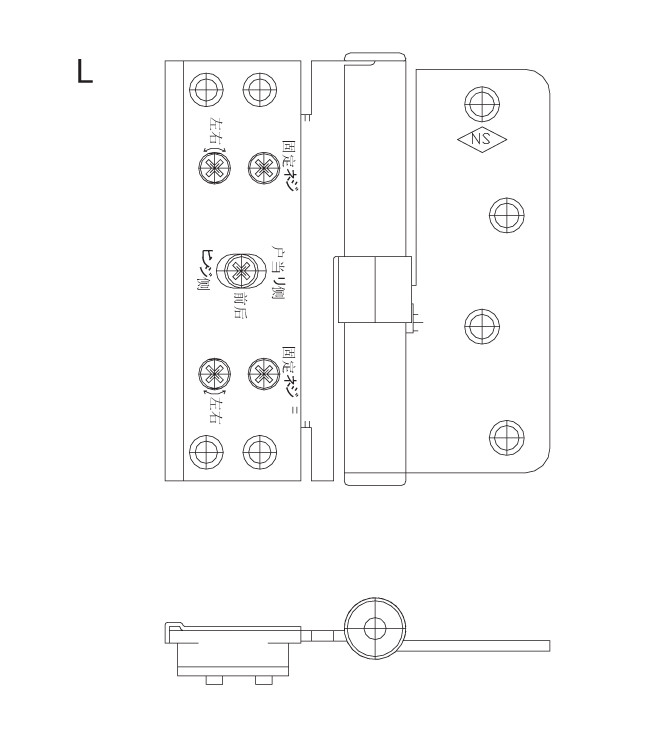

Drawing
Installation: Insert the door guard in the slot as showed in the guide, and fasten it with screws (Mind the vertical direction of the door guard)
1. Fix the hinge in the slot of the frame
2. Align the axis of the lower hinge with the hole as showed in the guide (no insertion). Align the upper hinge with the hole and insert it in the hole.
Adjustment value and adjustment of hinge
Forward and backward adjustment value
-2 - 2mm
Up and down adjustment value
-2 - 2mm
Left and right adjustment value
-2 - 2mm
If the cases below happen, you can adjust the hinge with a screwdriver.
Loosen screws before the adjustment and fasten screws after the adjustment.
