Sliding Door Hardware Accessories - Sliding Door Lock
Sliding Door Lock with Monitor
(YS-68-M)

Sliding Door Lock with key
(YX-05-K)

Sliding Door Lock with double safety
( YX-65-K)

Product
Medle
Cover
color
Sliding Door Lock with Monitor
YS-68-M
Painting
GL(Gold),SL(Silver),U2(Brown)
Sliding Door Lock with key
YX-05-K
Painting
GL(Gold),SL(Silver),U2(Brown)
Sliding Door Lock with double safety
YX-65-K
Painting
GL(Gold),SL(Silver),U2(Brown)

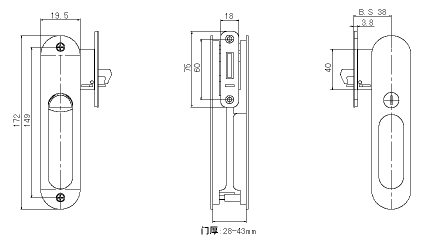

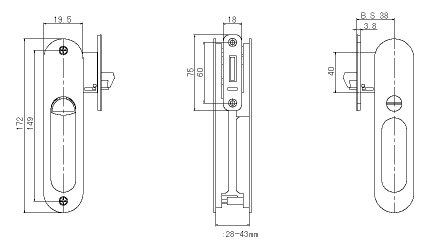

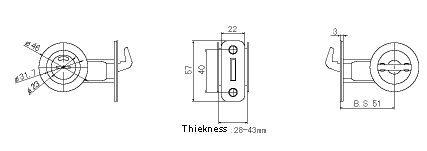

Drawing
　
YS-68-M
　
YX-05-K/YX-65-K

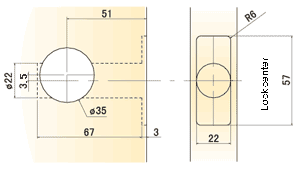

Installation（YS-68-M）
1. Insert the sliding door lock in the slot as showed in the guide and fasten the panel with screws. (Mind the direction of lock and panel)
　
2. Insert lock panel in the slot as showed in the guide and fasten the panel with screws. (Note: If the door is 28 -35mm thick, please apply flat head screws (M4X12) and junction level (L23). If the door is 35 -43mm thick, please apply flat head screws (M4X20) and junction level (L23).

Installation（YX-05-K/YX-65-K）
1. Insert the sliding door lock in the slot as showed in the guide and fasten the panel with screws. (Mind the direction of lock and panel)
　
2. Insert lock panel in the slot as showed in the guide and fasten the panel with screws. (Note: If the door is 28 -35mm thick, please apply flat head screws (M4X20) and junction level (L21.4). If the door is 35 -43mm thick, please apply flat head screws (M4X30) and junction level (L28).
