| Tri-folding Door ( ZD-3-01) |
|
|

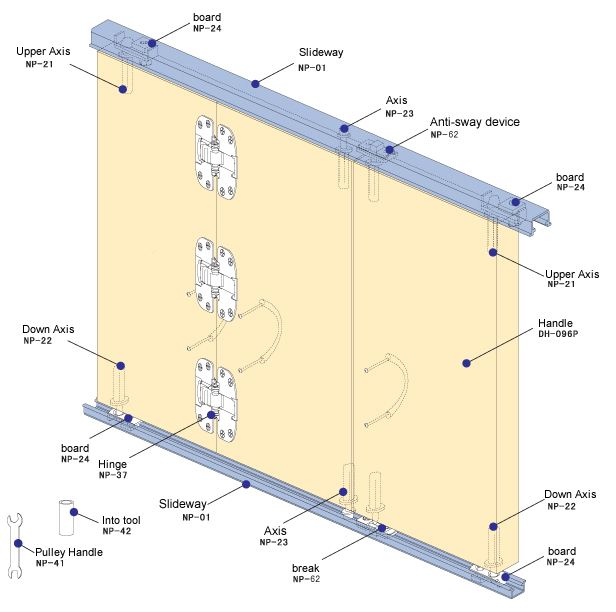

List of hardware accessories for ZD-3-01 |
Accessories |
Bolt
NP-62 |
Supporting board
NP-24 |
Slideway
NP-01 |
Upper axis
NP-21 |
Down axis
NP-22 |
|
|
|
|
|
Volume |
|
4 |
2 |
2 |
2 |
Accessories |
axis
NP-23 |
Central Hinge
NP-31 |
Intro Plus
NP-42 |
handle
DH-120P |
|
|
|
|
|
|
Volume |
2 |
3 |
1 |
3 |
1 |
|
Installation |
 |
””  |
| 1. Insert supporting board NP-24 and sway retainer NP-62 in Slideway NP-01. ( No fastening for adjustment later) |
|
 |
|
|
|
| ””
|
| 2.
Fasten the slideway NP-01 in slot of the slot. |
|
|
|
|
| |
3. Align the slots of both doors and fasten it with NP-37 |
|
|
|
|
|
| |
4.
Fasten NP-23, NP-21, NP22, NP-25 in the hole as showed in the guide with NP-42
|
|
|
|
|
|

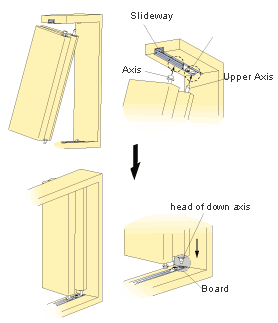

5. Lean the door as showed in the guide. Install the upper axis and the sliderail in the supporting board's concave. Erect the door vertically and align the head of down axis with the supporting board's concave. Let the door down.
|
|
|
|
|
|
””  |
6. Fasten the handle DH-96P in the hole.
|
|
|
|
|
Adjustment |
|
””  |
1. If the case happens below, please loosen the hexagon head screw of the supporting board with spanner NP-41.Make the door vertical after adjustment.
Fasten the door with screws. |
|
|
|
|
|
|
2. If the case happens below, please span the hexagon head screw of down axis NP-22 with spanner NP-41 to adjust clearance between door and frame. |
|
|
|
|
””  |
| 3. Align the central of upper and down axis while adjusting. |
|
|
|
|
|
|

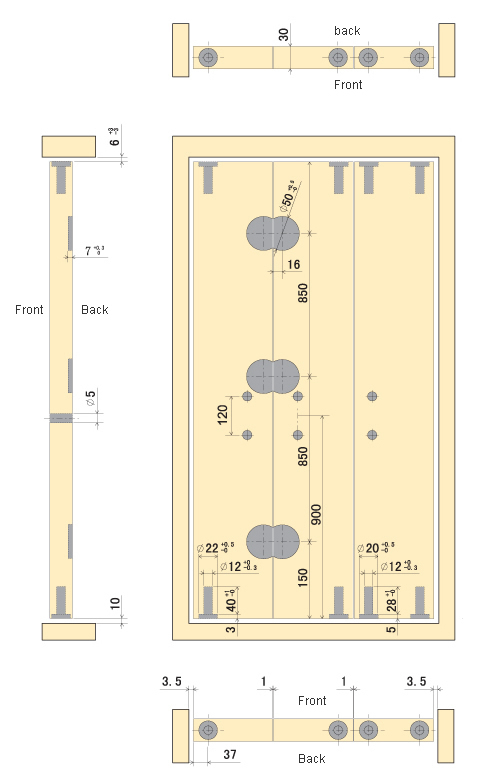

Drawing of door |
|
|
