Folding Door Hardware Accessories -Installation of fold door
Quad-folding Door(Free for
Kitchen cabinets ZD-4-02)
List of Other Hardware Accessories (ZD-4-02)
Accessories
Pulley
NH-70
Upper Slideway
NH-001
Down Slideway
NP-01
Upper
NP-28
Down
NP-29
Volume
4
1
1
2
2
Accessories
Slideway
NP-23
Hinge
NP-39
Pulley Panel
NH-061
Into Plus
NP-42
Handle
DH-120P
Volume
4
6
4
1
4
Installation
1. Discharge the metal shell of pulley NH-071 ( Push down the shifter and take out the metal shell)

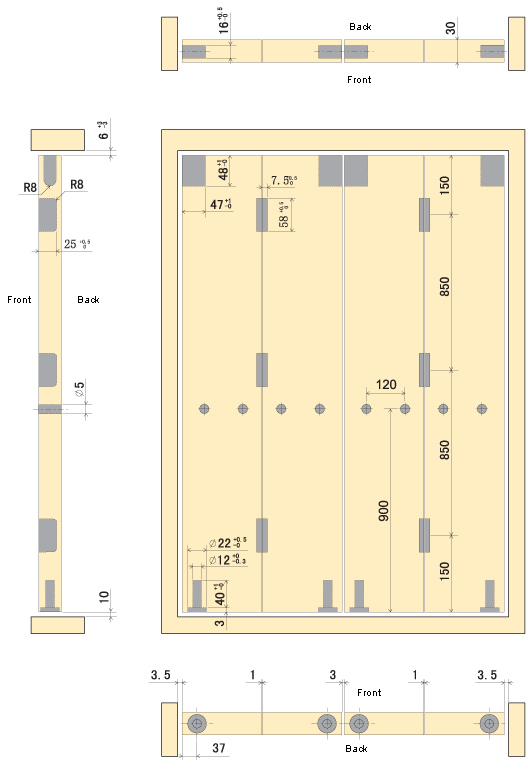

2. Install pulley body in the upper slideway NH-001( Clean the slideway before installation)
3. Install NP-28 and NP-29 in the upper slideway NH-001 respectively and slideway NP-01 ( no fastening for adjustment later)
4. Fasten the upper Slideway NH-001 and Slideway NP-01 in the slot of the frame.
5. Fasten the metal shell of the pulley NH-071 in the slot of upper door.
6. Align the slots of doors and fasten it with central hinge NP-39.
7. Fasten NP-23 in the slot of down door with NP-42

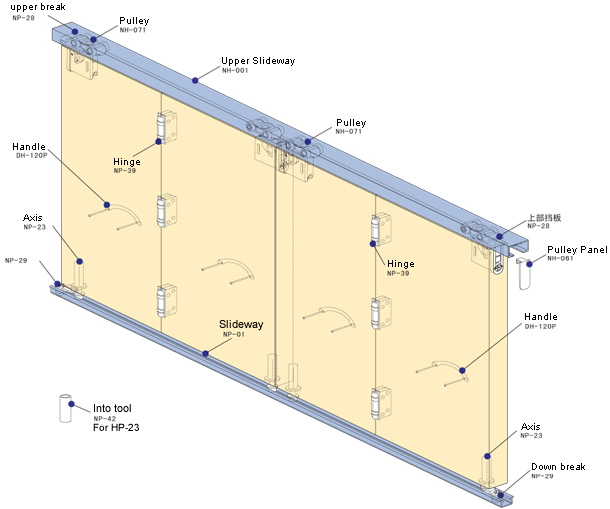

8. Erect the folding door as showed in the guide and insert NP-23 in the down slideway NP-01. Unfold the door and insert the pulley NH-071 into the metal shells of both sides. Push up the shifter.
9. Cover the decoration panel NH-061 over NH-071
10.
Fasten the handle DH-120P in the hole.
Adjustment
1. If the case happens below, please loosen the hexagon head screw of the supporting board with spanner NP-41.Make the door vertical after adjustment.
Fasten the door with screws.
2. If the case happens below, please span the hexagon head screw of down axis NP-22 with spanner NP-41 to adjust clearance between door and frame.
3. Align the central of upper and down axis while adjusting.
