Sliding Quad-pass Door without down slideway (YD-2-01)

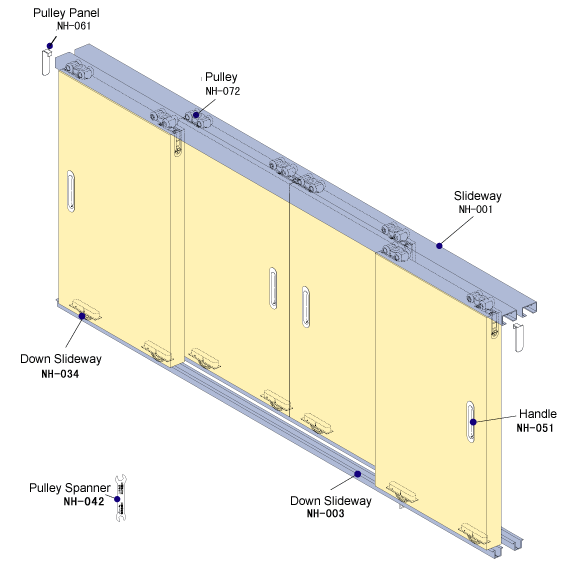

List of hardware accessories for YD-4-01

Accessories

Pulley
NH-072

Upper Slideway
NH-001
Down Slideway NH-034
Down Slideway
NH-003

Pulley Spanner NH-042

Handle
NH-051
Pulley Panel NH-061
Volume
8
2
8
2
1
8
8

Installation
””
1. Separate Pulley NH-072 (Push down the shifter and take out the metal shell)
””
2. Fix the pulley in the upper slideway NH-001(Clear the slideway before installation)
3. Fasten the upper slideway NH-001 and the down slideway separately in the slot of upper frame.
4. Fasten the down pulley NH -34 in the slot.
5. Erect the door as showed in the guide and insert the down pulley NP -034 in the down slideway NP-039. Insert pulley NH -072 in the metal shell. Push up the shifter.
””
6. Cover the panel NH-061 over the pulley NH-072.
7. Fasten the handle NH -051 in the hole of the door.

Adjustment
””
1. If uneven door clearance happens, pleas adjust NH-072 with cross screwdriver to parallel door and frame. (adjustment value +3mmm, -3mm )
Left screw equals to lower door
Right screw equals to raise door
2. If door leans left or right, please adjust down slideway NH-031 with cross screwdriver and adjust NH-072 with spanner to make door vertical. (Adjustment value is + 2mm , -2mm ,NH-072 + 2mm , -2mm )

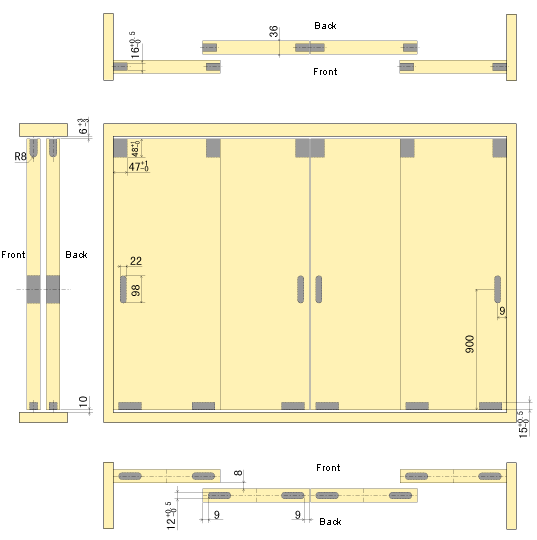

Drawing of door
