Door Hardware Accessories - Hinge III |
Product Name |
Item No. |
Cover |
Color |
Hinge III 36R Up |
SNS3DR36 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 36R Down |
SNS3DR36 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 36L Up |
SNS3DL36 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 36L Down |
SNS3DL36 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 40R Up |
SNS3DR40 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 40R Down |
SNS3DR40 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 40L Up |
SNS3DL40 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 40L Down |
SNS3DL40 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
33mm is the thickness of door. Recommended weight of door is below 50KG |
|

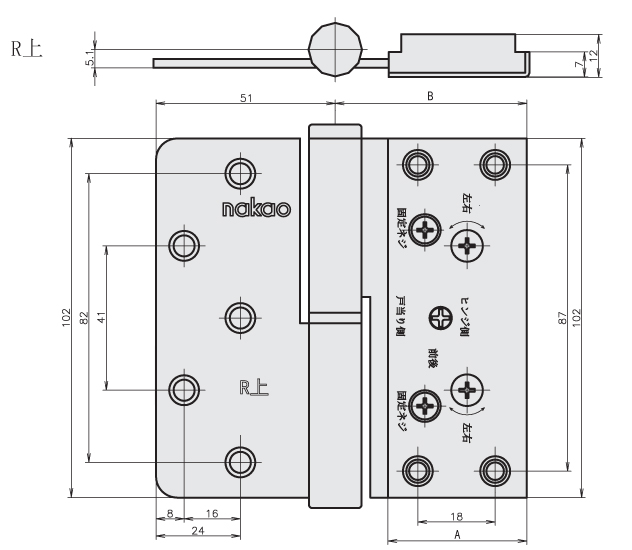

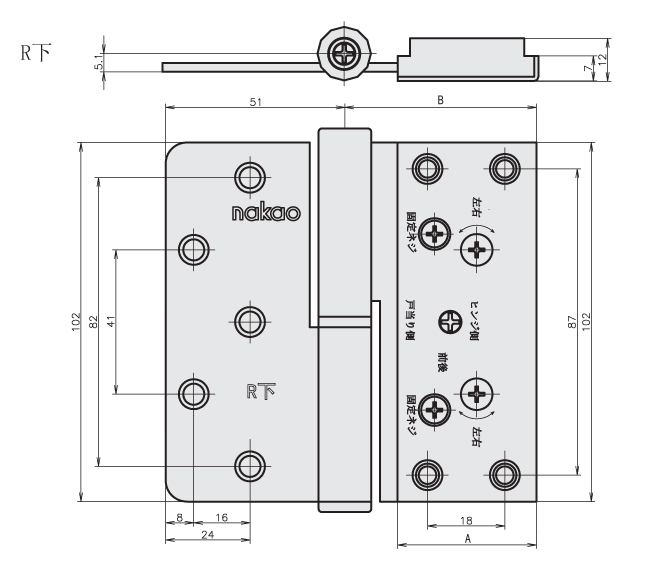

Dimension |
Models |
A |
B |
SNS3D36 |
37.6 |
52.5 |
SNS3D40 |
39.5 |
54.5 |
|
Drawing |
Models |
A |
B |
SNS3D36 |
3 |
30 |
SNS3D40 |
4 |
32 |
|
Installation: Insert the door guard in the slot as showed in the guide, and fasten it with screws (Mind the vertical direction of the door guard) |
|
Adjustment value and adjustment of hinge |
Forward and backward adjustment value
|
-2 - 2mm |
Up and down adjustment value
|
-2 - 2mm |
Left and right adjustment value
|
-2 - 2mm |
If the cases below happen, you can adjust the hinge with a screwdriver.
Loosen screws before the adjustment and fasten screws after the adjustment.
|
1. tilt for forward and backward
 |
|
|
Adjustment accomplished
|
2. Clearance uneven
 |
3.tilt for lift and right
 |
|
|
