Product Name: Sliding Bypass Door (With upper slideway and down slideway) Item No.: YD-2-02
YD-2-02Îå½ğÅä¼ş±í

Accessories
Pulley
NH-072

Upper Slideway
NH-001

Pulley Brake NH-021
Pulley Panel NH-061
Pulley Handle
NH-041
Down Slideway NH-034
Down Slideway NH-003
Handle NH-051

Volume
2
2
2
4
1
4
2
4

Installation
¡¡

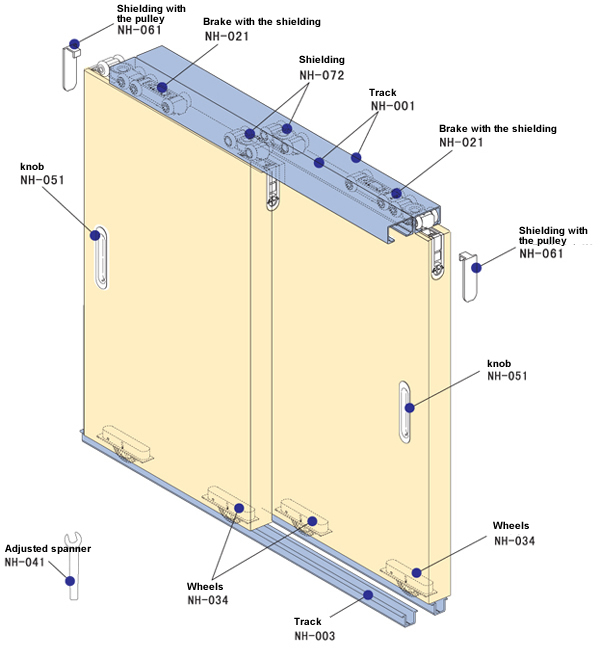

1. Separate Pulley NH-072 with Pulley brake NH-021 (Push down the shifter and take out the metal shell)
¡¡
2. Fix the pulley and brake body in the upper slideway NH-001(Clear the slideway before installation)
¡¡
3. Fasten the upper slideway and down slideway in the slot of upper frame.

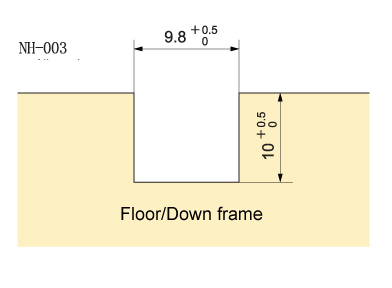

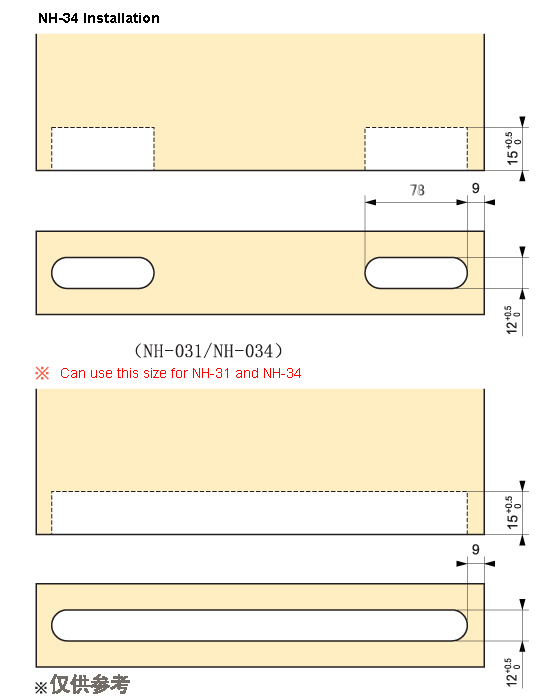

4. Fasten the down pulley in the slot of down frame.
¡¡
5. Fasten the brake NH -021 in the designated location of the slideway. (Screw head is no higher than the brake)
6. Fasten the Pulley NH-072 and metal shell of the brake in the slot of upper frame.
¡¡
7. Erect the door as showed in the guide and insert the down pulley in the slot. Insert pulley body in the metal shell. Push up the shifter.


8. Cover the panel NH-061 over the pulley NH-072.

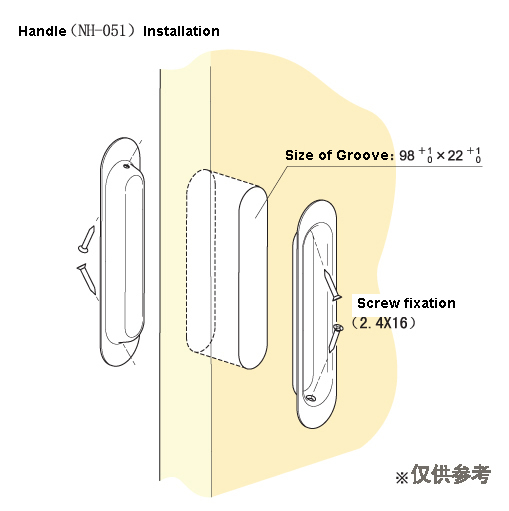

9. Fasten handle NH-051 over the hole..

¡¡
10. Customers can choose different handles on sliding doors.

Adjustment
¡¡
1. If uneven door clearance happens, pleas adjust NH-072 with cross screwdriver to parallel door and frame. (adjustment value +3mmm, -3mm )
Left screw equals to lower door
Right screw equals to raise door
2. If door leans left or right, please adjust down slideway NH-031 with cross screwdriver and adjust NH-072 with spanner to make door vertical. (Adjustment value is + 2mm , -2mm ,NH-072 + 2mm , -2mm )
