Door Hardware Accessories - Hinge |
Product Name |
Item No. |
Cover |
Color |
Hinge III 33R |
NSW3DR33 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
Hinge III 33L |
NSW3DL33 |
Painting |
GL(Gold),SL(Silver),U2(Brown) |
33mm is the thickness of door. Recommended weight of door is below 40KG |
|
Dimension |
|

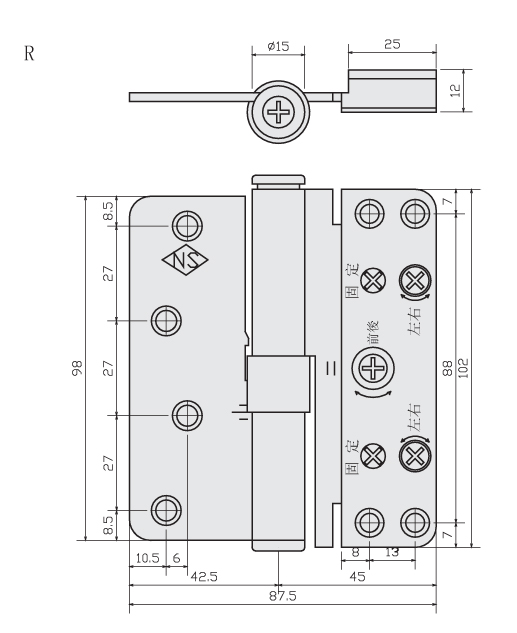

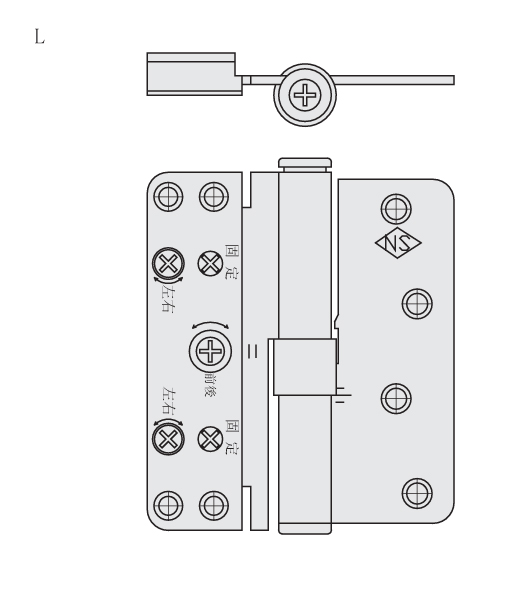

Drawing |
|
Installation: Insert the door guard in the slot as showed in the guide, and fasten it with screws (Mind the vertical direction of the door guard) |
|

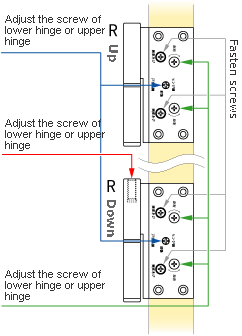

Adjustment value and adjustment of hinge |
Forward and backward adjustment value
|
-2 - 2mm |
Up and down adjustment value
|
-2 - 2mm |
Left and right adjustment value
|
-2 - 2mm |
If the cases below happen, you can adjust the hinge with a screwdriver.
Loosen screws before the adjustment and fasten screws after the adjustment.
|
1. tilt for forward and backward
 |
|
|
Adjustment accomplished
|
2.
Clearance
uneven
 |
3.tilt for lift and right
 |
|
|
