Folding Door Hardware Accessories -Installation of fold door |

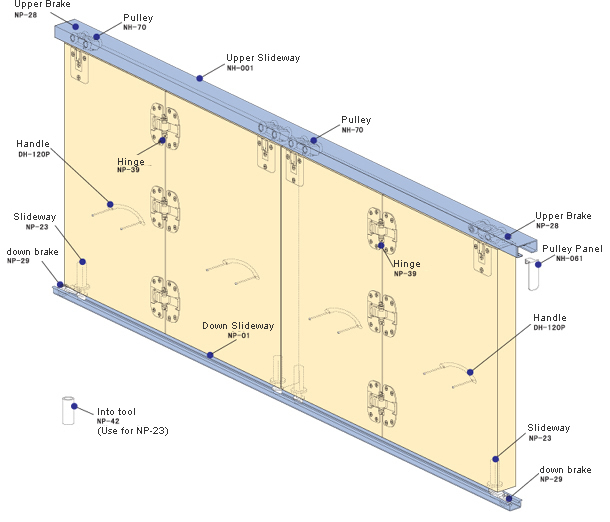

| Quad-folding Door (ZD-4-01) |
|
|
List of Other Hardware Accessories (ZD-4-01) |
Accessories |

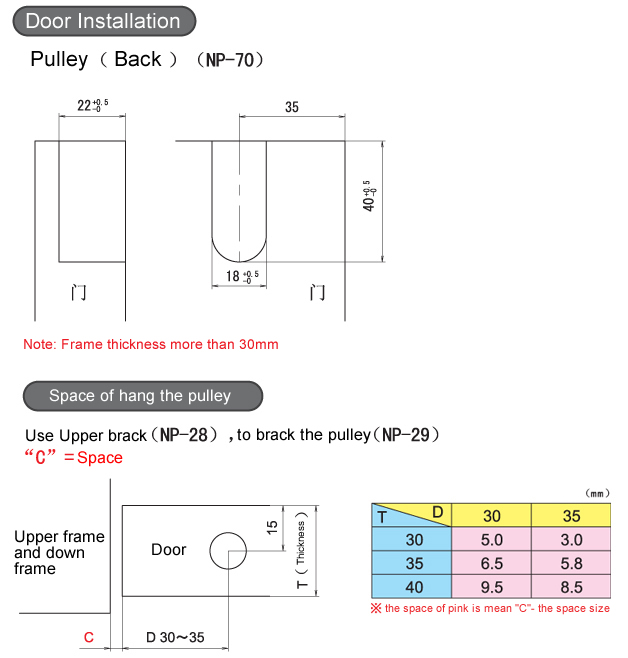

Pulley
NH-70 |

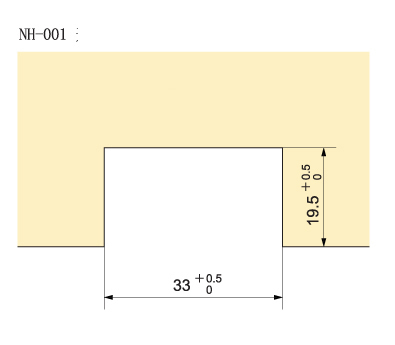

Upper Slideway
NH-001 |
Down Slideway
NP-01 |

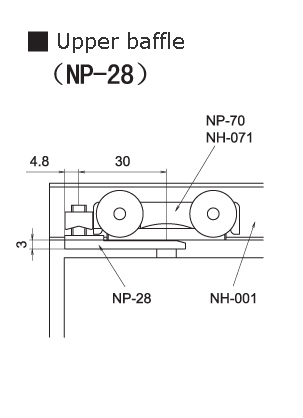

Upper
NP-28 |

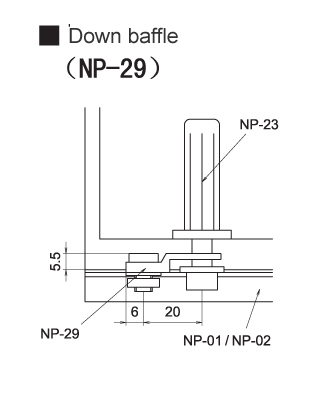

Down
NP-29 |
|
|
|
|
|
Volume |
4 |
1 |
1 |
2 |
2 |
Accessories |
Slideway
NP-23 |
Hinge
NP-39 |
Pulley Panel
NH-061 |
Intro Plus
NP-42 |
|
|
|
|
|
|
Volume |
4 |
6 |
4 |
1 |
4 |
|
Installation |
 |
|
|

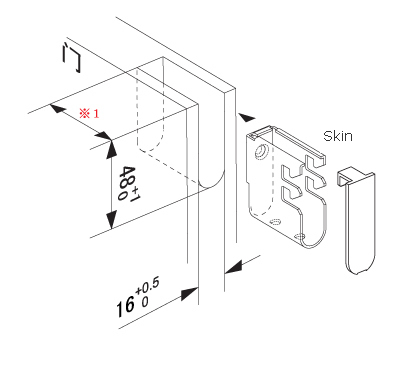

| 1. Fix the supporting board NP -24 in the upper slideway NP-01. (No tight screw for adjustment) |
|
 |
|
|
|
|
|
| 2. Fix the supporting board NP -24 in the upper slideway NP-01. (No tight screw for adjustment) |
|
|
|
|
| |

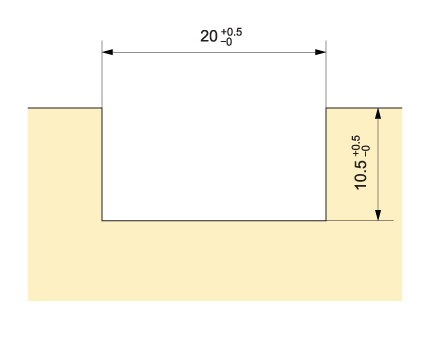

3. Fasten the slideway NP -01 in the slot of upper frame. |
|
|
|
|
|
| |
4. Fasten the slideway NP -01 in the slot of upper frame. |
|
|
|
|
|
5. Fasten Magnetic sway retainer NP -61 in the lower part of the door. |
|
|
|
|
|
|
|
6.
Align the two doors and fasten them with central hinge NP-39 |
|
|
|
|
|

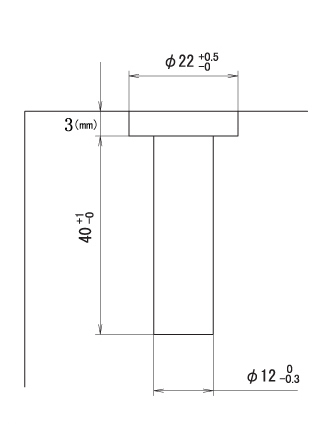

7. Fasten the slideway NP-21, upper axis NP-21, down NP-22 as showed in the guide with NP -42 in the hole.
|
|
|
|
|
|
|
|
8.
Lean the door as showed in the guide and insert the upper axis and slideway in the concave of supporting board and slideway. Raise the door vertically and align the head of down axis with the concave of the supporting board. Push down the door.
|
|
|
|
|
|
9. Fasten the hanle DH -120 in the hole. |
|
|
|
|
|
|
Adjustment |
|
|
|
1. If the case happens below, please loosen the hexagon head screw of the supporting board with spanner NP-41.Make the door vertical after adjustment.
Fasten the door with screws. |
|
|
|
|
|
|
2. If the case happens below, please span the hexagon head screw of down axis NP-22 with spanner NP-41 to adjust clearance between door and frame.
|
|
|
|
|
|
|
3. Align the central of upper and down axis while adjusting. |
|
|
|
|
|
|
|
